Wiley Post Airport - Oklahoma City


Engineers Flying Club Inc.

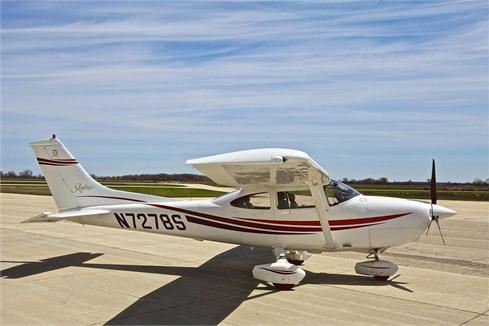

N7278S, 1999 Cessna 182S Skylane

N7278S Information Manual (Refer to AFM for aircraft specific information)
Aspen EFD 1000 PFD Pilot's Guide
Garmin 430W Quick Reference
KAP 140 Autopilot Pilot's Guide
Insight Graphic Engine Monitor
Garmin 696 Quick Reference

Performance Specifications:

^M ^M ^M ^M ^M ^M
AIRFRAME: Aluminum
  Wingspan 36 ft 0 in
  Wing area 174 sq ft
  Length 29 ft 0 in
  Height 9 ft 4 in
  Gross Weight 3100 lbs
 Maximum Landing Weight2950 lbs
  Useful Load 1148 lbs
  Basic Empty Weight 1962 lbs
  Fuel Capacity 88 gal useable
PROPELLER: McCauley Constant Speed 3 blades 79 in diam
ENGINE: Lycoming IO-540-AB1A5 230 @ 2400 rpm
PERFORMANCE: Never Exceed Speed (Vne) 179 kts
  Cruise Speed (80% power) 140 kts
  Maximum Range 820 nm
  Rate of Climb (Sea Level) 924 fpm
  Service Ceiling 18,100 ft
  Stall Speed (flaps up) 54 kts
  Stall Speed (flaps extended) 49 kts
  Best Rate of Climb (Vy) 80 kts
  Best Angle of Climb (Vx) 63 kts
  Landing (over 50' obstacle) 1300 ft
  Takeoff (over 50' obstacle) 1365 ft
  Wing loading 17.8 lbs/sq ft
  Power loading 13.5 lbs/hp
